基础光照模型系列

  1. 高洛德高光反射 (Gouraud Specular)
  2. Phong 逐像素高光反射
  3. Blinn-Phong 光照模型（半角向量优化）
  4. 包含法线贴图与阴影接收的工程级实现

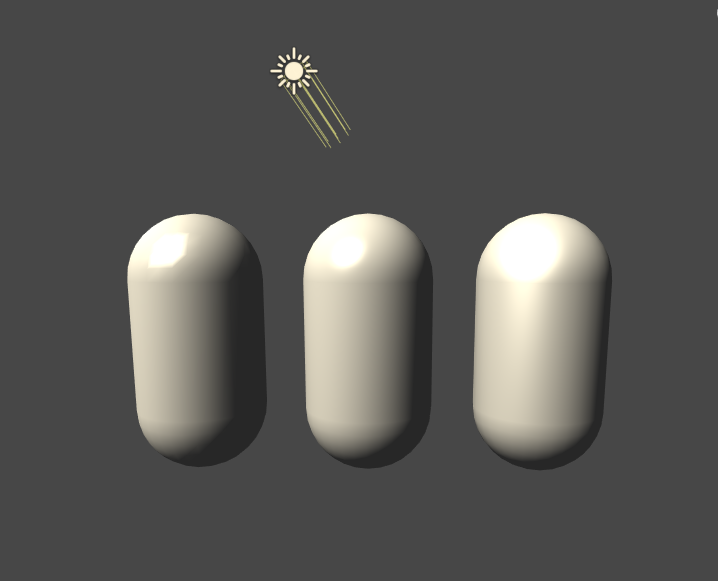

高光反射效果对比


(左：高洛德高光反射，中：Phong 逐像素高光反射，右：Blinn-Phong 光照模型)

1. 高洛德高光反射 (Gouraud Specular)

原理说明：在**顶点着色器（Vertex Shader）**中计算反射向量 ，再与视线方向 做点积求高光。由于高光区域在顶点间非线性变化，顶点插值容易导致高光区域失真或“漏掉”高光斑，现代引擎极少使用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
Shader "Custom/GouraudSpecular" {
	Properties {
		_Diffuse ("Diffuse Color", Color) = (1, 1, 1, 1)
		_Specular ("Specular Color", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20 // 控制高光光斑大小与锐度
	}
	SubShader {
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				fixed3 color : COLOR;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);

				// 漫反射计算
				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * saturate(dot(worldNormal, worldLightDir));

				// 反射光向量 reflect(入射方向, 法线)
				fixed3 reflectDir = normalize(reflect(-worldLightDir, worldNormal));
				fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - mul(unity_ObjectToWorld, v.vertex).xyz);

				// 高光计算：pow(dot(v, r), gloss)
				fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(saturate(dot(reflectDir, viewDir)), _Gloss);

				o.color = ambient + diffuse + specular;
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				return fixed4(i.color, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Specular"
}

2. Phong 逐像素高光反射 (Pixel Specular)

原理说明：在**片元着色器（Fragment Shader）**中逐像素计算反射光向量与视线方向的点积，高光斑边缘过渡柔和真实。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
Shader "Custom/PixelSpecular" {
	Properties {
		_Diffuse ("Diffuse Color", Color) = (1, 1, 1, 1)
		_Specular ("Specular Color", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.worldNormal = UnityObjectToWorldNormal(v.normal);
				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);

				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * saturate(dot(worldNormal, worldLightDir));

				fixed3 reflectDir = normalize(reflect(-worldLightDir, worldNormal));
				fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - i.worldPos);

				fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(saturate(dot(reflectDir, viewDir)), _Gloss);

				return fixed4(ambient + diffuse + specular, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Specular"
}

3. Blinn-Phong 光照模型（半角向量优化）

原理说明：引入半角向量（Half Vector） 。通过计算法线与半角的点积 替代反射向量 ，省去了复杂的 reflect() 运算，性能更高，且在大入射角观察时的高光更平滑。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
Shader "Custom/BlinnPhong" {
	Properties {
		_Diffuse ("Diffuse Color", Color) = (1, 1, 1, 1)
		_Specular ("Specular Color", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"

			fixed4 _Diffuse;
			fixed4 _Specular;
			float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
				float3 worldPos : TEXCOORD1;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.worldNormal = UnityObjectToWorldNormal(v.normal);
				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);

				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * saturate(dot(worldNormal, worldLightDir));

				fixed3 viewDir = normalize(_WorldSpaceCameraPos.xyz - i.worldPos);
				// Blinn-Phong 核心：半角向量
				fixed3 halfDir = normalize(worldLightDir + viewDir);
				fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(saturate(dot(worldNormal, halfDir)), _Gloss);

				return fixed4(ambient + diffuse + specular, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Specular"
}

4. 工业级工程应用：法线贴图 + Blinn-Phong + 阴影与双 Pass

原理说明：支持切线空间法线解包、主光源阴影衰减（AutoLight.cginc）以及前向附加光照（ForwardAdd）。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
Shader "Custom/BumpedBlinnPhongWithShadow" {
	Properties {
		_Color ("Color Tint", Color) = (1, 1, 1, 1)
		_MainTex ("Main Tex", 2D) = "white" {}
		_BumpMap ("Normal Map", 2D) = "bump" {}
		_Specular ("Specular Color", Color) = (1, 1, 1, 1)
		_Gloss ("Gloss", Range(8.0, 256)) = 20
	}
	SubShader {
		Tags { "RenderType"="Opaque" "Queue"="Geometry"}

		// Base Pass
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma multi_compile_fwdbase
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex; float4 _MainTex_ST;
			sampler2D _BumpMap; float4 _BumpMap_ST;
			fixed4 _Specular; float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
				float4 TtoW1 : TEXCOORD2;
				float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
				fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
				o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
				o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

				TRANSFER_SHADOW(o);
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz * albedo;
			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

				fixed3 halfDir = normalize(lightDir + viewDir);
				fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(bump, halfDir)), _Gloss);

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);
				return fixed4(ambient + (diffuse + specular) * atten, 1.0);
			}
			ENDCG
		}

		// Add Pass
		Pass {
			Tags { "LightMode"="ForwardAdd" }
			Blend One One
			CGPROGRAM
			#pragma multi_compile_fwdadd
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex; float4 _MainTex_ST;
			sampler2D _BumpMap; float4 _BumpMap_ST;
			fixed4 _Specular; float _Gloss;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
				float4 TtoW1 : TEXCOORD2;
				float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
				fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
				o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
				o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

				TRANSFER_SHADOW(o);
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
				fixed3 viewDir = normalize(UnityWorldSpaceViewDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;
			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

				fixed3 halfDir = normalize(lightDir + viewDir);
				fixed3 specular = _LightColor0.rgb * _Specular.rgb * pow(max(0, dot(bump, halfDir)), _Gloss);

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);
				return fixed4((diffuse + specular) * atten, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Specular"
}
