基础光照模型系列

  1. 高洛德漫反射 (Gouraud Shading)
  2. Phong 逐像素漫反射
  3. Half-Lambert 半兰伯特漫反射
  4. 包含法线贴图与光照衰减的工程级实现

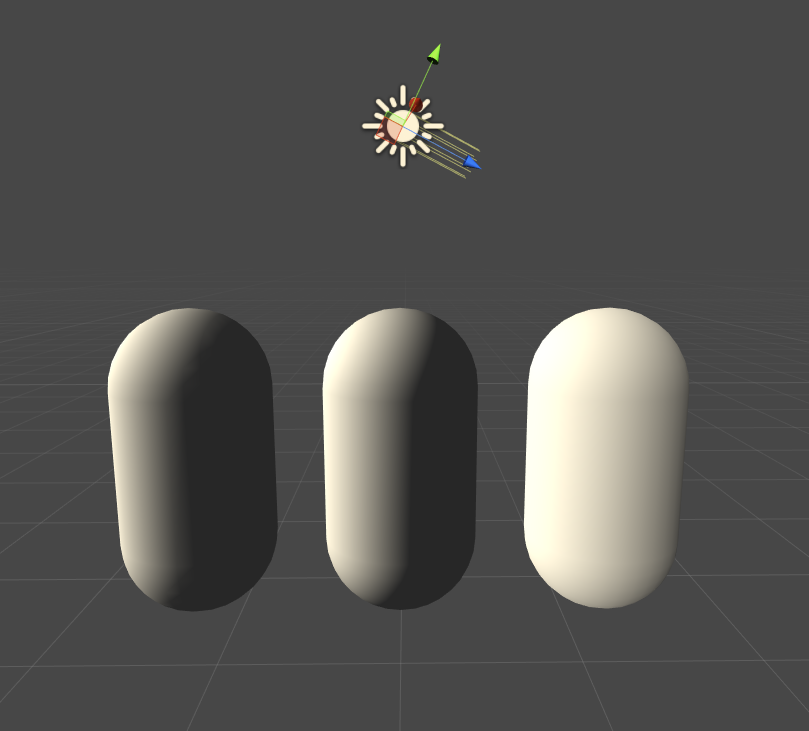

漫反射效果对比


(左：高洛德漫反射，中：Phong 逐像素漫反射，右：Phong 半兰伯特漫反射)

1. 高洛德漫反射 (Gouraud Diffuse)

原理说明：在**顶点着色器（Vertex Shader）**中计算漫反射光照，然后通过光栅化阶段插值传入片元着色器。计算量小、性能极高，但在低多边形网格表面容易产生明显的折线光照伪影。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Shader "Custom/GouraudDiffuse" {
	Properties {
		_Diffuse ("Diffuse Color", Color) = (1, 1, 1, 1)
	}
	SubShader {
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"

			fixed4 _Diffuse;
			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				fixed3 color : COLOR;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				// 获取环境光 (由 Lighting.cginc 与 ForwardBase 决定)
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				// 在世界空间下获取平行光方向
				fixed3 worldLight = normalize(_WorldSpaceLightPos0.xyz);
				// 计算漫反射：_LightColor0 为光源颜色，saturate 将点积截取至 [0, 1]
				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * saturate(dot(worldNormal, worldLight));

				// 顶点颜色累加环境光与漫反射
				o.color = ambient + diffuse;
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				return fixed4(i.color, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Diffuse"
}

2. Phong 逐像素漫反射 (Pixel Diffuse)

原理说明：顶点着色器仅负责将顶点法线转换到世界坐标系并传递给片元；在**片元着色器（Fragment Shader）**中对每个像素逐一归一化法线并计算点积光照。光照平滑细腻，能够完美呈现曲面阴影过渡。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Shader "Custom/PixelDiffuse" {
	Properties {
		_Diffuse ("Diffuse Color", Color) = (1, 1, 1, 1)
	}
	SubShader {
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"

			fixed4 _Diffuse;
			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.worldNormal = UnityObjectToWorldNormal(v.normal);
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);
				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * saturate(dot(worldNormal, worldLightDir));
				fixed3 color = ambient + diffuse;
				return fixed4(color, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Diffuse"
}

3. Phong 半兰伯特漫反射 (Half-Lambert)

原理说明：由 Valve 在《半条命》中提出，通过公式 dot(n, l) * 0.5 + 0.5 将标准朗伯光照 [-1, 1] 的范围重新映射到 [0, 1]。即使背面不受光也能保留环境阴影层次，有效防止暗部死黑，非常适合角色面部与皮肤渲染。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Shader "Custom/HalfLambert" {
	Properties {
		_Diffuse ("Diffuse Color", Color) = (1, 1, 1, 1)
	}
	SubShader {
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"

			fixed4 _Diffuse;
			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
			};
			struct v2f {
				float4 pos : SV_POSITION;
				float3 worldNormal : TEXCOORD0;
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.worldNormal = UnityObjectToWorldNormal(v.normal);
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz;
				fixed3 worldNormal = normalize(i.worldNormal);
				fixed3 worldLightDir = normalize(_WorldSpaceLightPos0.xyz);
				// 半兰伯特核心公式映射
				fixed3 halfLambert = dot(worldNormal, worldLightDir) * 0.5 + 0.5;
				fixed3 diffuse = _LightColor0.rgb * _Diffuse.rgb * halfLambert;
				fixed3 color = ambient + diffuse;
				return fixed4(color, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Diffuse"
}

4. 工业级工程应用：法线贴图 + 阴影投射与光照衰减

原理说明：实际游戏项目中，漫反射通常配合切线空间法线贴图（Normal Map）与 Unity 前向渲染多 Pass（ForwardBase + ForwardAdd），以支持多光源累加与实时阴影投射（TRANSFER_SHADOW / SHADOW_ATTENUATION）。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
Shader "Custom/BumpedDiffuseWithShadow" {
	Properties {
		_Color ("Color Tint", Color) = (1, 1, 1, 1)
		_MainTex ("Main Tex", 2D) = "white" {}
		_BumpMap ("Normal Map", 2D) = "bump" {}
	}
	SubShader {
		Tags { "RenderType"="Opaque" "Queue"="Geometry"}

		// Base Pass: 处理平行光、环境光与主阴影
		Pass {
			Tags { "LightMode"="ForwardBase" }
			CGPROGRAM
			#pragma multi_compile_fwdbase
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex; float4 _MainTex_ST;
			sampler2D _BumpMap; float4 _BumpMap_ST;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
				float4 TtoW1 : TEXCOORD2;
				float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
				fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
				o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
				o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

				TRANSFER_SHADOW(o);
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;
				fixed3 ambient = UNITY_LIGHTMODEL_AMBIENT.xyz * albedo;
			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);
				return fixed4(ambient + diffuse * atten, 1.0);
			}
			ENDCG
		}

		// Add Pass: 处理点光源与聚光灯累加
		Pass {
			Tags { "LightMode"="ForwardAdd" }
			Blend One One
			CGPROGRAM
			#pragma multi_compile_fwdadd
			#pragma vertex vert
			#pragma fragment frag
			#include "Lighting.cginc"
			#include "AutoLight.cginc"

			fixed4 _Color;
			sampler2D _MainTex; float4 _MainTex_ST;
			sampler2D _BumpMap; float4 _BumpMap_ST;

			struct a2v {
				float4 vertex : POSITION;
				float3 normal : NORMAL;
				float4 tangent : TANGENT;
				float4 texcoord : TEXCOORD0;
			};

			struct v2f {
				float4 pos : SV_POSITION;
				float4 uv : TEXCOORD0;
				float4 TtoW0 : TEXCOORD1;
				float4 TtoW1 : TEXCOORD2;
				float4 TtoW2 : TEXCOORD3;
				SHADOW_COORDS(4)
			};

			v2f vert(a2v v) {
				v2f o;
				o.pos = UnityObjectToClipPos(v.vertex);
				o.uv.xy = v.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				o.uv.zw = v.texcoord.xy * _BumpMap_ST.xy + _BumpMap_ST.zw;

				float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				fixed3 worldNormal = UnityObjectToWorldNormal(v.normal);
				fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
				fixed3 worldBinormal = cross(worldNormal, worldTangent) * v.tangent.w;

				o.TtoW0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
				o.TtoW1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
				o.TtoW2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);

				TRANSFER_SHADOW(o);
				return o;
			}

			fixed4 frag(v2f i) : SV_Target {
				float3 worldPos = float3(i.TtoW0.w, i.TtoW1.w, i.TtoW2.w);
				fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));

				fixed3 bump = UnpackNormal(tex2D(_BumpMap, i.uv.zw));
				bump = normalize(half3(dot(i.TtoW0.xyz, bump), dot(i.TtoW1.xyz, bump), dot(i.TtoW2.xyz, bump)));

				fixed3 albedo = tex2D(_MainTex, i.uv.xy).rgb * _Color.rgb;
			 	fixed3 diffuse = _LightColor0.rgb * albedo * max(0, dot(bump, lightDir));

				UNITY_LIGHT_ATTENUATION(atten, i, worldPos);
				return fixed4(diffuse * atten, 1.0);
			}
			ENDCG
		}
	}
	FallBack "Diffuse"
}
